EX35001
Cân phân tích kỹ thuật EX35001 do hãng OHAUS sản xuất ủy quyền cho CÔNG TY CỔ PHẦN CÂN ĐIỆN TỬ THỊNH PHÁT có địa chỉ trụ sở chính tại số 57 Đường Nguyễn Văn Thương, Phường 25, Quận Bình Thạnh, TP.Hồ Chí Minh nhập khẩu và phân phối, quí khách có nhu cầu xin liên hệ điện thoại (028) 62.888.666 di dộng có zalo 0915.999.111 hoặc 0908.444.000 website www.ohausvietnam.com
|
Model
|
Cân kỹ thuật EX35001
|
|
Mức cân
|
35 kg
|
|
Độ đọc
|
0.1 g
|
|
Kích thước đĩa
|
(377 x 311) mm
|
|
Kích thước cân
|
(443 x 120 x 377) mm.
|
|
Hiển thị
|
Màn hình cảm ứng màu (Full-color VGA, touch screen)
|
|
Giao tiếp
|
RS232 và USB
|
|
Nhập khẩu
|
Thư ủy quyền nhập khẩu và phân phối |
|
Nguồn
|
220-240VAC kèm sạc Adapter 12v/1A |
|
Sản xuất
|
OHAUS USA
|
Giá:
Liên hệ
Thông tin chi tiết

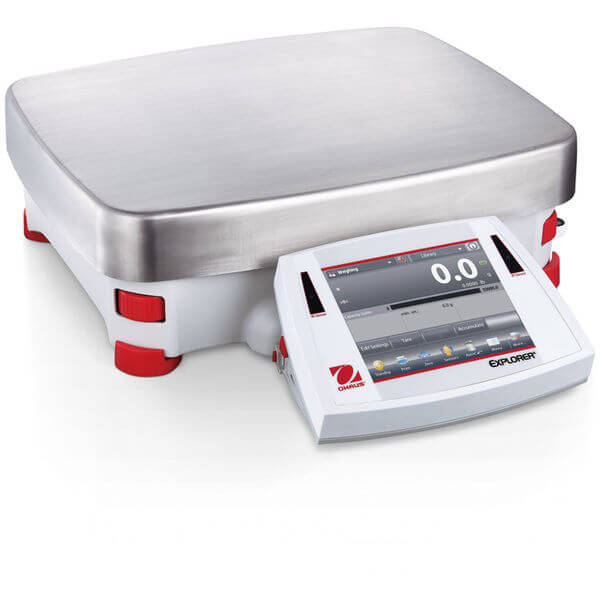

EXPLORER™PRECISION HIGH CAPACITY
Flagship Balances from OHAUS EX35001
OVERVIEW
OHAUS Explorer High Capacity balances provide unmatched functionality in a line of high-performance, high-capacity balances unlike any other on the market! This smart and intuitive balance simplifies even the most complex high-capacity laboratory measurements.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics.
Display
5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC Adapter (included) or rechargeable battery (accessory sold separately)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan.
SPECIFICATIONS
|
Model
|
EX35001
|
|
Maximum Capacity
|
35 kg
|
|
Readability
|
0.1 g
|
|
Pan Size
|
14.8 in x 12.2 in (377 mm x 311 mm)
|
|
Internal Calibration
|
AutoCal™ - Automatic
|
|
Draftshield
|
--------------
|
|
Auto Door
|
Not applicable
|
|
Auxiliary Display Model
|
Available as an Accessory |
|
Battery Life
|
10 Hours with Rechargeable Battery |
|
Built-in Ionizer
|
No |
|
Communication
|
Ethernet (Available as an Accessory); USB (Included); RS232 (Included) TPS VIET NAM OEM
|
|
Dimensions
|
17.44 in x 4.7 in x 14.9 in (443 mm x 120 mm x 377 mm) (LxHxW) |
|
Display
|
Full-color 5.7 in VGA, touch screen |
|
In-Use Cover
|
Included |
|
Legal for Trade
|
Not applicable |
|
Linearity ±
|
0.2 g |
|
Minimum Weight
|
(USP, 0.1%, typical) 210 g
|
|
Net Weight
|
22 lb (10 kg) |
|
Pan Construction
|
Stainless Steel |
|
Power
|
AC Adapter (Included) |
|
Repeatability, typical
|
0.1 g |
|
Stabilization Time
|
1 s |
|
Tare Range
|
To capacity by subtraction |
|
Units of Measurement
|
Ounce Troy; Pennyweight; Momme; Gram; Kilogram; Grain; Tola; Tical; Mesghal; Carat; Ounce; Custom |
|
Working Environment
|
50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing) |
Tài liệu kỹ thuật
