T72XW
Bộ chỉ thị T72XW do hãng OHAUS sản xuất ủy quyền cho CÔNG TY CỔ PHẦN CÂN ĐIỆN TỬ THỊNH PHÁT có địa chỉ trụ sở chính tại số 57 Đường Nguyễn Văn Thương, Phường 25, Quận Bình Thạnh, TP.Hồ Chí Minh nhập khẩu và phân phối, quí khách có nhu cầu xin liên hệ điện thoại (028) 62.888.666 di dộng có zalo 0915.999.111 hoặc 0908.444.000 website www.ohausvietnam.com
|
Model
|
Bộ chỉ thị Ohaus T72XW
|
|
Độ Phân giải
|
1/50.000
|
|
Hiển thị
|
Màn hình LCD, đèn nền backlight độ tương phản cao
|
|
Kết nối
|
10 load cell 350 2mv/v hoặc 3mv/v
|
|
Giao tiếp
|
RS 232, USB, SD card
|
|
Kích thước
|
(283 x 86 x 232) mm
|
|
Tiêu chuẩn
|
CE, ĐLVN, OIML |
|
Nhà sản xuất
|
OHAUS USA |
|
Nhập khẩu
|
TPS |
|
Nguồn
|
220-240VAC Pin sạc 6V/5Ah, kèm Adaptor 12V/1A |
Giá:
Liên hệ
Thông tin chi tiết

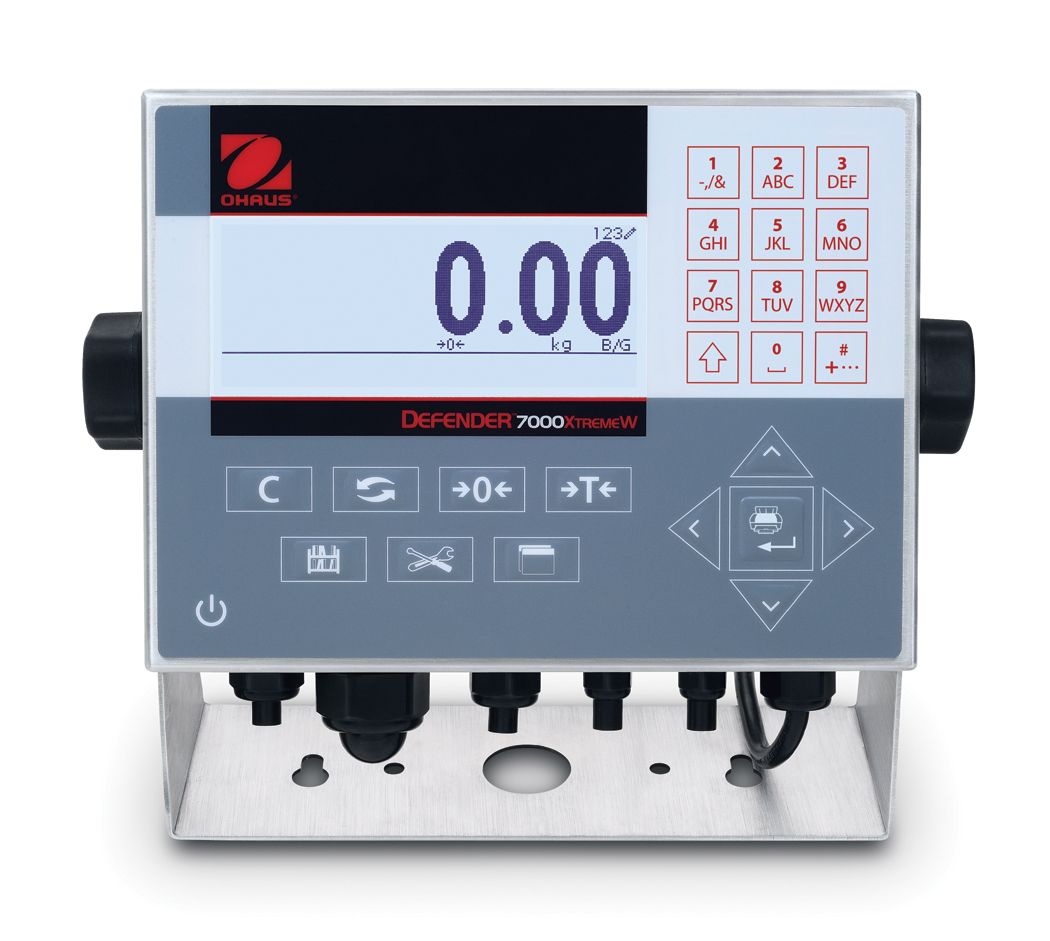

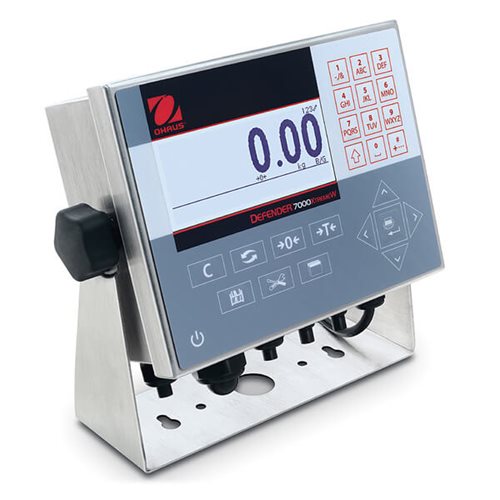

The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings.
Applications
Weighing, Parts Counting, Checkweighing, Animal/Dynamic Weighing, Vehicle Weighing
Display
Transflective graphic LCD with white backlight, 240 x 96 pixels
Operation
AC power (included)
Communication
Easy access communication port including RS232 (included), USB, Ethernet and second RS232 or RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction

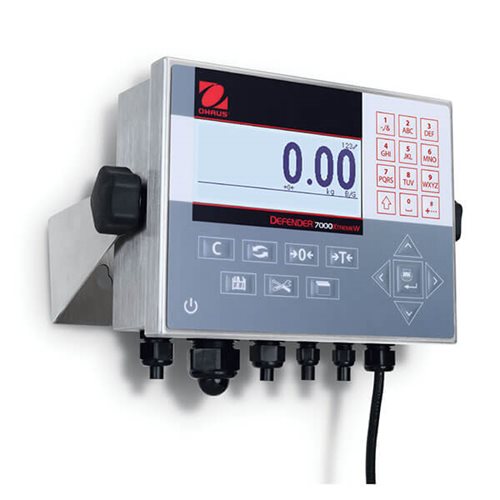

IP66/NEMA 4X stainless steel housing and mounting bracket
Design Features
Checkweighing lights with selectable operation and audible signal settings, sealed front panel, 5 operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability and overload/underload indicators
SPECIFICATIONS T72XW
| Resolution |
50,000 |
| Resolution (Certified) |
6,000 |
| Battery Life |
Not applicable |
| Outputs |
2 In/4 Out digital I/O |
| Second Scale Input |
Not Applicable |
| Protection Rating |
IP66 |
| Communication |
2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Dimensions (HxLxW) |
3.4 in x 9.1 in x 11.1 in (86 mm x 232 mm x 283 mm) (LxHxW) |
| Display |
graphic LCD |
| In-use cover |
Available as an Accessory |
| Legal for Trade |
NTEP Certified; EC Type Approved; Measurement Canada Approved |
| Net Weight |
6.6 lb (3 kg) |
| Power |
AC Adapter (Included) |
| Protection Rating |
IP66 |
| Tare Range |
To capacity by subtraction |
| Units of Measurement |
Metric Tons; Kilogram; Gram; Pound; Ounce; Pound:Ounce |
| Working Environment |
14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) |
